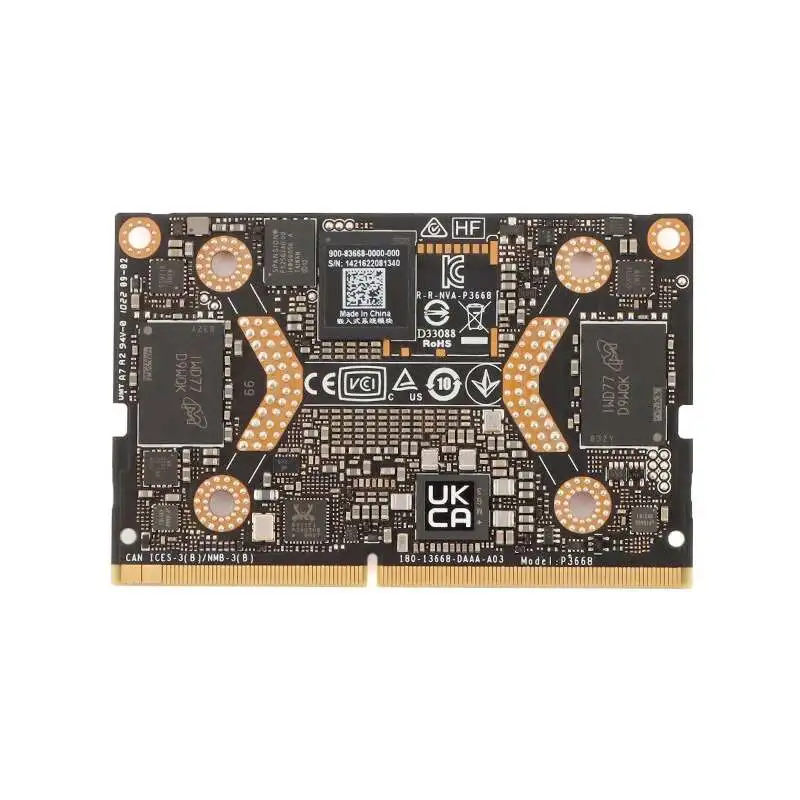

NVIDIA Jetson Xavier NX Module 16GB RAM
A compact and powerful edge AI System-on-Module delivering up to 21 TOPS of AI performance. Designed for robotics, smart cameras, and edge computing applications with high efficiency and scalability.
Product Description
The NVIDIA Jetson Xavier NX Module 16GB redefines edge AI computing by delivering
server-class performance in a compact, power-efficient System-on-Module (SoM).
It is capable of running multiple neural networks simultaneously while processing
high-resolution sensor data in real time.
Powered by a 6-core NVIDIA Carmel ARM v8.2 CPU and a 384-core NVIDIA Volta™ GPU
with 48 Tensor Cores, the Xavier NX delivers up to 21 TOPS of AI performance.
With 16GB LPDDR4x memory and 16GB eMMC storage, it is ideal for demanding edge AI
workloads such as robotics, industrial automation, and smart surveillance systems.
The module supports NVIDIA JetPack SDK, enabling cloud-native AI development and
providing access to CUDA, cuDNN, TensorRT, and other essential AI libraries.
Key Features
- Up to 21 TOPS (INT8) AI performance
- 6-core NVIDIA Carmel Arm® v8.2 64-bit CPU
- 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
- 16GB LPDDR4x memory with 59.7 GB/s bandwidth
- Multiple power modes: 10W / 15W / 20W
- Compact 69.6 mm × 45 mm SoM form factor
Specifications
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel Arm® v8.2 64-bit |
| Memory | 16GB 128-bit LPDDR4x (59.7 GB/s) |
| Storage | 16GB eMMC 5.1 |
| Power | 10W – 20W |
| Camera Interface | 14-lane MIPI CSI-2 (up to 6 cameras) |
| Networking | 1× Gigabit Ethernet |
| PCIe | 1× PCIe Gen4 x4 + 1× PCIe Gen3 x1 |
| Dimensions | 69.6 mm × 45 mm |
Applications
- Autonomous robots and drones
- Smart cameras and video analytics
- Industrial automation and inspection
- Medical imaging and diagnostic devices
- Edge AI gateways for IoT systems
